Max Payload
Rigid 8×4 + HIAB
As is often the way with us, we’ve added a solution that we’ve built in our own workshops for a specific purpose.
In addition to a Lorry Loading Crane, offering limited self load/off loading capabilities, its primary objective is carry the MAXIMUM weight possible in a rigid configuration.

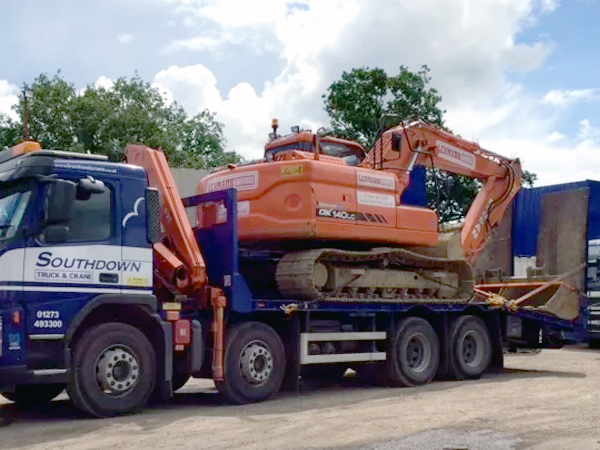

Weighing in at just 15,250 kgs it can move 16,750 kgs on its low slung cheese-wedge beavertail body. So a 14 t excavator plus buckets can now be safely delivered to the increasing number of ‘No Artics!’ sites. Plus having a decent length of body, long steel or timber load members can also be hauled.
Truck and crane specifications
| VOLVO 8X4 Rigid | Body & Crane |
|---|---|
| Bhp: 400 | FASSI 9500 |
| LEZ/FORS: Yes | Drawbar: Combination ball/eye |
| Sleepercab: No | Max radius: 5.90 metres |
| Twist locks: Yes | Lift & load: 1,745 kgs |
| Travel height: 3.43 metres | SWL@ 5.90 m: 1,210 kgs |
| O/R Spread: 4.74 metres | Rad @ 1.5 t: 5.00 m |
| Payload: 16,750 kgs Road use* | Fall arrest: Yes |
